What is a DMX512 Console? What Are the Buttons on a DMX512 Console?

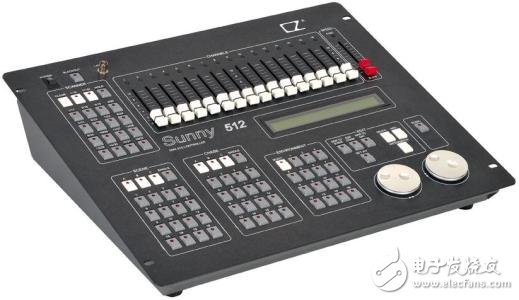

A DMX512 console is a control interface used in stage lighting and entertainment systems. It acts as a central management tool that allows users to program, manage, and operate lighting fixtures. The console provides a visual layout of the system through windows, showing the console tree, administrative settings, and events related to connected devices. One of its key functions is sending control signals to lighting equipment, making it essential for smooth stage operations.
DMX512 stands for Digital Multiplex, which refers to a digital communication protocol used for controlling stage lighting and effects. Developed in 1990 by the US Stage Lighting Association (USITT), the DMX512 protocol defines electrical specifications, data formats, and transmission standards. This standard has become the industry norm for lighting control systems worldwide.
Therefore, a DMX512 console is an industry-standard tool used to manage and control lighting setups using DMX512 protocols. It enables operators to create complex lighting sequences, adjust parameters, and run automated shows with precision.

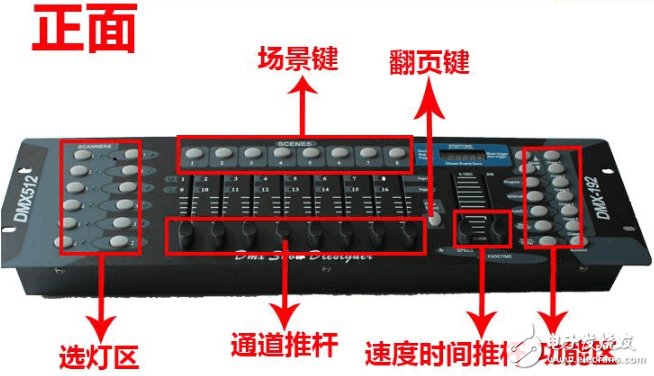

Button Function Description

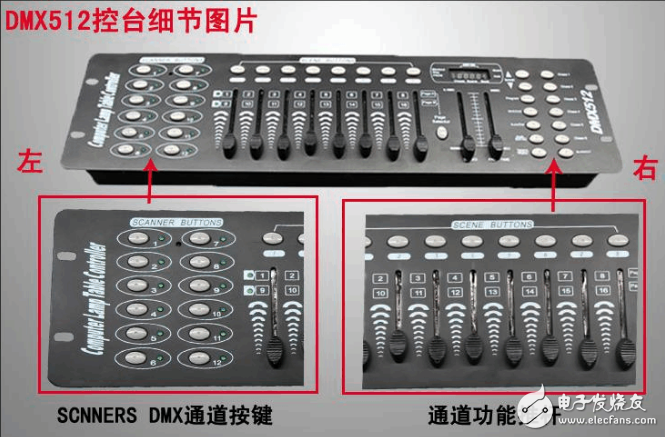

1. SCANNERS: Activates channels 1–12 for scanning or moving light effects.
2. SCENS: A parameter adjustment fader used to set values for different scenes. It switches between pages (A to B) and offers 16 control parameters.
3. BANK: Allows selection of channel banks, such as 101–130, by using up/down number keys.
4. PROGRAM: Enters programming mode for editing scenes or chases.
5. MIDI/ADD: Used for saving or editing programs.
6. AUTO/DEL: Enables auto-run or deletes selected programs.
7. CHASE1–CHASE6: Edits chase sequences or pre-programmed light movements.
8. BLACK OUT: Turns off all lights at once.
9. FADE TIME/SPEED: Adjusts the duration and speed of transitions between lighting steps.
Operation Instructions
1. Turn on the power of the computer light first. Then switch on the DMX512 console. The LCD should display "101".
2. Press and hold the PROGRAM button for two seconds to enter programming mode. A small indicator will appear in the lower left corner of the screen. Turn on the SCANNERS 1–12 channels, and their corresponding lights will illuminate.
3. Use the SCENS fader to adjust the parameter values for each channel.
4. To save a scene, press and hold the MIDI/ADD button, then press the number button 2. The screen will flash, confirming the first scene (101) is saved. To edit the second scene, press and hold MIDI again, then press number 3. Repeat this process for scenes 102, 103, etc., up to 801.
5. After editing 8 scenes (from 101 to 801), press the PROGRAM button again for two seconds to store them. A dot will appear in the upper left corner. Press BLACK OUT, then AUTO/DEL, and use the FADE TIME and SPEED controls to adjust the show's timing. Be careful not to set the speed too high, as it may cause the light to lose steps.
6. Repeat the same steps to edit scenes 102–802, 103–803, and so on.
7. To edit a CHASE sequence, press the PROGRAM button again, then press CHASE1. The screen will display "1101." To add scenes like 101–801 and 102–802, follow these steps:
(1) Press number 1, release, then press MIDI once to save 101.
(2) Press number 2, release, then press MIDI again to save 201.
These steps can be repeated for all scenes. Once programmed, they can be played back the same way.
8. To delete a scene, enter the PROGRAM mode, press AUTO/DEL, and then press the corresponding number button. The selected scene will be removed from the CHASE sequence.
Using a DMX512 console effectively requires understanding both its hardware layout and software functionality. With proper training, operators can create dynamic and professional lighting shows for live performances, theater, and events.
